HI-POWER MINI TYPE [Model CMR-H] CATALOG
CMR-H0709

CMR-H0709(Standard pitch type)

CMR-HW0709

CMR-HW0709(Fine pitch type)

[Application]
Permanent magnetic chucks for grinding operations to hold materials such as cemented carbide that cannot be secured fully.
[Features]
CMR-H
Suitable mainly for relatively large and thick workpieces. The gap characteristic is excellent.
The holding power has been increased 1.5 times max. from the conventional chucks.
The separator part is made of stainless steel to enhance accuracy stability.
CMR-HW
Works well on small, thin workpieces that cannot be held by conventional pitches.
The holding power is 2 times max. (depending on materials) the conventional chucks.
The separator part is made of stainless steel to enhance accuracy stability.

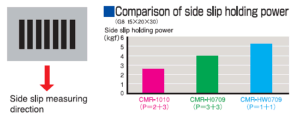

Comparison of side slip holding power
CMR-H type holding power characteristic
[mm(in)]
Model Nominal Dimensions Height Pole Pitch Mass
CMR-H 0709 65(2.55)x90(3.54) 30(1.18) 6(3+3)
 0.23(0.11+0.11)
1.3kg/2.8lb
CMR-H W 0709 2(1+1)
 0.07(0.03+0.03)
CMR-H 1215 120(4.72)x150(5.90) 33(1.29) 6(3+3)
 0.23(0.11+0.11)
3.6kg/7.9lb
CMR-H W 1215 2(1+1)
 0.07(0.03+0.03)
