LARGE PERMANENT MAGNETIC LIFMA [Model LPH] CATALOG
Permanent magnetic Lifma with smooth operation and enhanced safety realized by pursuing the optimum magnetic circuit to the limit.

LPH-1000


LPH-1500
 [Application]
Permanent magnetic type lifting magnets used as a lifting section of cranes and hoists for transportation of steel materials in warehouses and machining shops or for loading and unloading workpieces to and from machine tools.
These are suitable for transporting semi-finished products having a flat surface such as machine parts, press dies and plastic molds and for transporting mill scale steel plates and flat steel materials.
[Features]

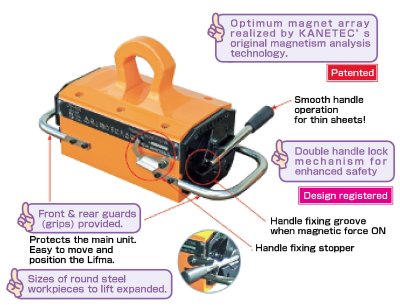

  • All types are capable of lifting steel plates and round steel bars.
  • The ON/OFF handle operating force has been reduced to a half max. of that of the conventional models. The operability in lifting thin workpieces and pipes that are difficult to lift with conventional models has been improved. (Patented)
  • In addition to the conventional handle lock mechanism, a safety stopper is provided as a standard accessory. These double safety measures prevent falling of lifted objects due to unexpected returning of the handle. (Design registered)
  • These are of permanent magnetic type requiring no power source. Thus, there is no risk of falling workpieces due to power failure or failure of wiring systems.
Precautions for use Precautions for use
When you plan to use the Lifma for special steel materials such as hardened materials, please consult with us prior to purchasing the Lifma.
The permanent magnetic Lifma LPH Series are not of waterproof construction. Ensure no water will enter or adhere to them.
Rust and scratches on the attractive face affect the holding power adversely. Repair it periodically.
　　　

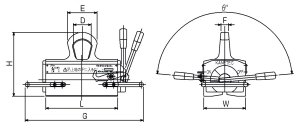

[mm(in)]
Model Liffting Capacity Dimensions Mass
Steel Plate Round dteel W L H G D E F θ
LPH-1000 1000kg/2205lb 600kg/1323lb 180
(7.08)		 320
(12.5)		 283
(11.1)		 505
(19.8)		 65
(2.55)		 110
(4.33)		 30
(1.18)		 175
(6.89)		 80kg/176lb
LPH-1500 1500kg/3307lb 800kg/1764lb 400
(15.7)		 303
(11.9)		 585
(23.0)		 75
(2.95)		 130
(5.11)		 100kg/220lb
LPH-2000 2000kg/4410lb 900kg/1984lb 205
(8.07)		 500
(19.6)		 319
(12.5)		 685
(26.9)		 80
(3.14)		 150
(5.90)		 35
(1.37)		 130kg/286lb
*The lifting capacity is indicated by a value that is a third of the maximum holding power(safety factor 3).

Steel plate lifting standard(Flat steel plates) [mm(in)]
Model
(LPH)		 Thickness
t6 t12 t25 t50 t100
1000 1450(57.0)
1500(59.0)X
1400(55.1)		 1600(62.9)
1500(59.0)X
1650(64.9)		 1550(61.0)
1500(59.0)X
1600(62.9)		 1300(51.1)
1500(59.0)×
1100(43.3)		 1000(39.3)
1500(59.0)X
650(25.5)
1500 - 1650(64.9)
1500(59.0)X
1800(70.8)		 1700(66.9)
1500(59.0)X
1900(74.8)		 1550(61.0)
1500(59.0)X
1600(62.9)		 1100(43.3)
1500(59.0)X
800(31.4)
2000 - - 1800(70.8)
 1750(68.8)
1800(70.8)X
1700(66.9)		 1300(51.1)
1800(70.8)X
950(37.4)
*If plates are thinner,the handle operation becomes harder. The handle operation also becomes harder when there is clearance. The return of the handle at the time of OFF operation becomes faster.

Round steel bar lifting standard(Mill scale) [mm(in)]
Model
(LPH)		 Steel bar
Min. dia Max. dia Pipe allowable dia *
1000 φ100(3.93)X3000(118.1)L φ500(19.6)X300(11.8)L φ100(3.93) - 700(27.5)
1500 φ100(3.93)X3000(118.1)L φ500(19.6)X400(15.7)L φ100(3.93) - 700(27.5)
2000 φ150(5.90)X3000(118.1)L φ500(19.6)X450(17.7)L φ150(5.90) - 700(27.5)
･The capacity varies depending on the wall thickness of pipes. If pipes are oval or curved, lifting them, even if　they are short, is risky. In the case of pipes, the handle operation is harder than when handling steel plates.
･In the case of pipes of thin wall thickness, the handle operation becomes difficult. The return of the handle at the time of OFF operation becomes faster.
･The lifting capacity varies depending on the diameters of round steel bars. When workpieces are longer than 3m, it is very dangerous to lift them with one unit of the Lifma since they cannot be held in balance. For long workpieces, consider the use of several beams.
※Keep in mind that the capacity drops when lifting pipes or workpieces the max. diameter of which is smaller than the attractive face or workpieces the max. diameter of which is shorter than the lifting standard length(LPH-2000).
