DRIP-PROOF SMALL PERMANENT MAGNETIC LIFMA™ [Model LPR-VN-WP] CATALOG

Drip-proof specification


LPR-VN600-WP

 [Application]
Unlike the standard type (indoor use), these Lifmas are of drip-proof construction and can be used for outdoor work.


Precautions for use
When operating the handle of LPR-VN75-WP and LPR-VN150-WP, be sure that the safety stopper will not interfere with the lifting fixture.

Precautions for use Precautions for use
When you plan to use the Lifma for special steel materials such as hardened materials, please consult with us prior to purchasing the Lifma.
These Lifmas are not of waterproof construction. Do not use them in water or places where they are subjected to water pressure nor leave them outdoor.

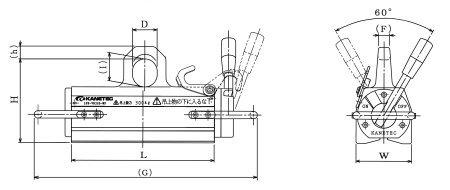

[mm(in)]
Model Liffting Capacity Dimensions Mass
Steel Plate Round dteel W L G h H D F I
LPR-VN75-WP 75kg/165lb 50kg/110lb 90
(3.54)		 80
(3.14)		 160
(6.29)		 15
(0.59)		 135
(5.31)		 40
(1.57)		 15
(0.59)		 45
(1.77)		 5.5kg/12.1lb
LPR-VN150-WP 150kg/330lb 100kg/220lb 130
(5.11)		 260
(10.2)		 8kg/17.6lb
LPR-VN300-WP 300kg/661lb 200kg/440lb 230
(9.05)		 360
(14.1)		 20
(0.78)		 18
(0.70)		 14kg/30.8lb
LPR-VN600-WP 600kg/1322lb 400kg/880lb 119
(4.68)		 330
(12.9)		 500
(19.6)		 25
(0.98)		 184
(7.24)		 60
(2.36)		 25
(0.98)		 65
(2.55)		 35kg/77.1lb
*The lifting capacity is indicated by a value that is a third (safety factor 3) of the max. holding power.
*LPR-VN75-WP is not provided with a rear guard. *For the lifting standard, see Model LPR-VN.
