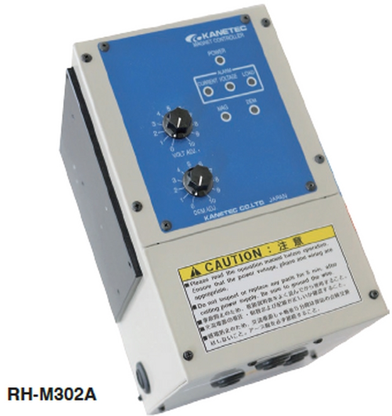

HIGH-SPEED CONTROLLER [Model RH-M] CATALOG
3 types of enhanced performance selectable according to installation environment join the lineup of high-speed controllers for electromagnetic holders !
RH-M102C
RH-M102C

Dedicated to electromagnetic holders

[Application]
These are important, breakthrough products that can make standard electromagnetic holders respond to higher speed work handling by robot hands, etc.
[Features]
The residual holding power, a factor to delay workpiece attaching and detaching, can be eliminated quickly to speed up the lines that use standard electromagnetic holders.(The demagnetizing time may become longer depending on materials of workpieces.)

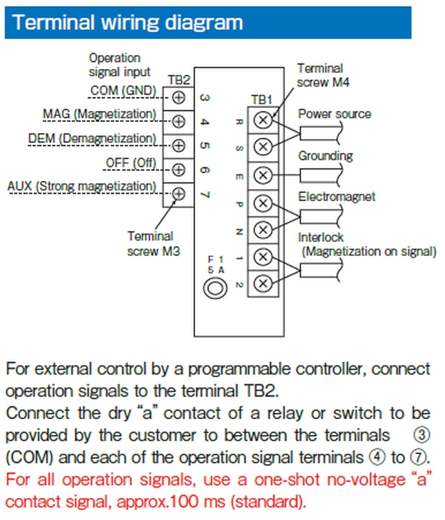

External operation is possible.

RH-M303A-6/24 series
[Features]
  • The employment of FET in the output circuit ensures high-speed and consistent demagnetization performance. These models also withstand frequent usage.
  • The demagnetization function is incorporated. (Alternate attenuation and reverse excitation can be selected with a dip switch.)
  • A wide range of power source from 100 VAC to 220 VAC can be used.
  • The rated output voltage can be selected between 24 V and 6 V with a dip switch. (KE-1B also supported.)

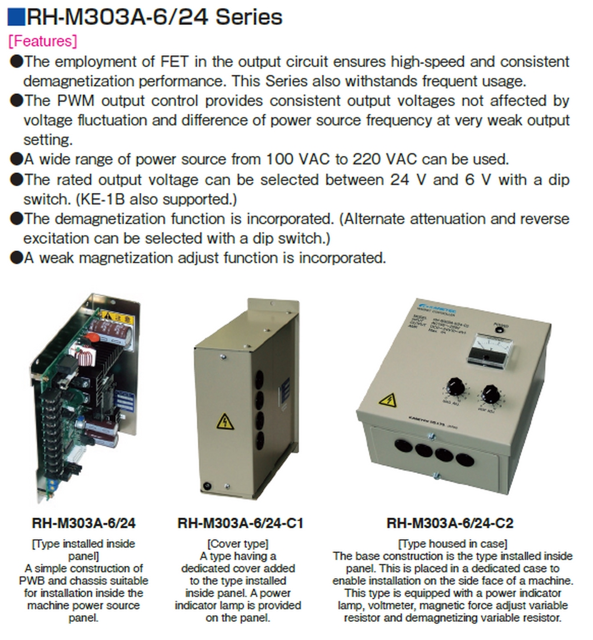

[Model installed inside the panel]
RH-M303A-6/24
RH-M303A-6/24
A simple construction of PWB and chassis suitable for installation inside the machine power source panel.

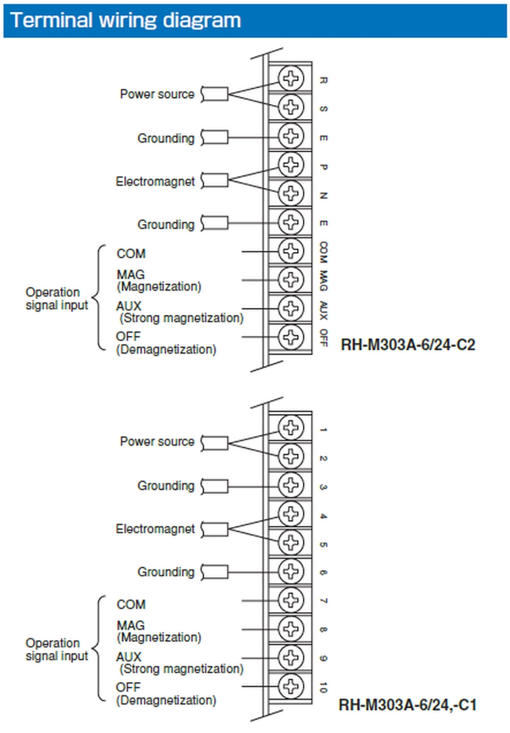

 [Cover model]
RH-M303A-6/24-C1
RH-M303A-6/24-C1
A model having a dedicated cover added to the model installed inside the panel.
A power indicator lamp is provided on the panel.
 [Model housed in the case]
RH-M303A-6/24-C2
RH-M303A-6/24-C2
The base construction is the model installed inside the panel. This is placed in a dedicated case to enable installation on the side face of a machine. This model is equipped with a power indicator lamp, voltmeter, magnetic force adjusting variable resistor and demagnetizing variable resistor.
[mm(in)]

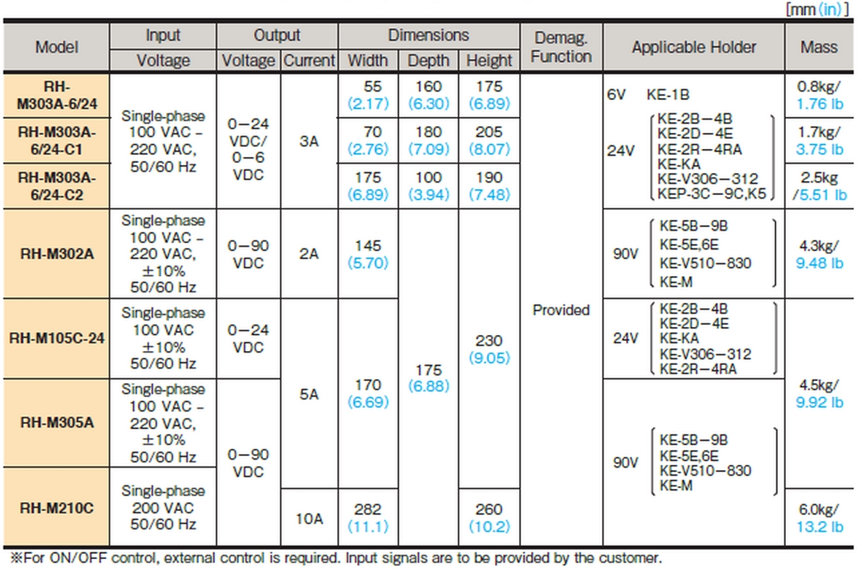

Model Input Output Dimensions Demagne
Function		 Applicable Holder Mass
Voltage Voltage Current Width Depth Height
RH-M303A-6/24 Single-phase
100 - 220
VAC
50/60Hz		 0-24 VDC
/0-6 VDC		 3A 55
(2.17)		 160
(6.30)		 175
(6.89)		 Provided
6V  KE-1B
24V KE-2B-4B
KE-2D-4E
KE-2R-4RA
KE-KA
KE-V306-312
KEP-3C-9C,K5
0.8kg/
1.76lb
RH-M303A-6/24-C1 70
(2.76)		 180
(7.09)		 205
(8.07)		 1.7kg/
3.75lb
RH-M303A-6/24-C2 175
(6.89)		 100
(3.94)		 190
(7.48)		 2.5kg/
5.51lb
RH-M102C Single-phase
100 VAC
50/60Hz		 0-90 VDC 2A 145
5.70		 175
(6.89)		 260
(10.2)
90V  KE-5B-9B
KE-5E,6E
KE-V510-830
KE-M
4.3kg/
9.48lb
RH-M105B 5A 170
(6.69)
90V  KE-5B-9B
KE-5E,6E
KE-V510-830
KE-M
4.5kg/
9.92lb
RH-M105B-24 0-24 VDC
24V  KE-2B-4B
KE-2D-4E
KE-KA
KE-V306-312
RH-M205B Single-phase
200 VAC
50/60Hz		 0-90 VDC
90V  KE-5B-9B
KE-5E,6E
KE-V510-830
KE-M
RH-M210B 10A 282
(11.1)		 290
(11.4)		 6.0kg/
13.2lb
