SUSPENDED PLATE MAGNET [Model KPM] CATALOG

KPMD-2560A


KPMJ-3040A		 [Application]
These permanent magnets are suspended above a chute or conveyor belt to attract and separate magnetic substances such as small iron pieces and particles from raw materials used in chemical, drug and other fine particle industries.
[Features]
Powerful attractive force. Compact and robust.
As a permanent magnet is used, no power source is required and therefore these magnets can be used in any place.
Very easy installation.
Precautions for use
To use these magnets in liquids (e.g. water) other than oil, please specify "enclosed type."

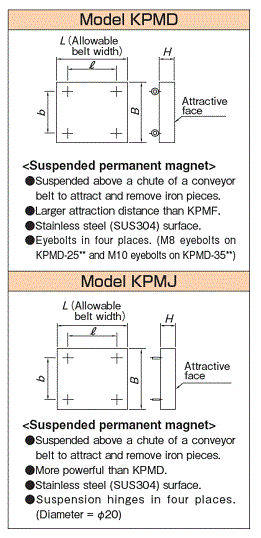

Model KPMD [mm(in)]


Model

 Dimensions Attraction Capacity Mass
B L b ℓ H 15-cm
nail		 M10
nut		 M10×25
bolt
KPMD-2525A 250
(9.84)
 250(9.84) 170
(6.69)		 170(6.69) 64(2.52) 130-170
(5.11-6.69)		 60-90
(2.36-3.54)		 100-130
(3.93-5.11)		 22kg/48.5lb
KPMD-2530A 300(11.8) 220(8.66) 27kg/ 59.5lb
KPMD-2540A 400(15.7) 320(12.6) 35kg/ 77.1lb
KPMD-2550A 500(19.6) 420(16.5) 44kg/ 97.0lb
KPMD-2560A 600(23.6) 520(20.4) 54kg/119.0lb
KPMD-3530A 350
(13.7)
 300(11.8) 270
(10.6)		 220(8.66) 82(3.22) 160-200
(6.29-7.87)		 80-120
(3.15-4.72)		 110-140
(4.33-5.51)		 49kg/108.0lb
KPMD-3540A 400(15.7) 320(12.6) 64kg/141.1lb
KPMD-3550A 500(19.6) 420(16.5) 80kg/176.4lb
KPMD-3560A 600(23.6) 520(20.4) 100kg/20.5lb
Model KPMJ
KPMJ-3030A 300
(11.8)		 300(11.8) 200
(7.87)		 200(7.87) 159(6.25) 180-250
(7.08-9.84)		 100-130
(3.93-5.11)		 120-160
(4.72-6.29)		 82kg/180.7lb
KPMJ-3040A 400(15.7) 260(10.2) 112kg/ 46.9lb
KPMJ-3050A 500(19.6) 360(14.1) 150kg/330.6lb
KPMJ-4040B 400
(15.7)		 400(15.7) 250
(9.84)		 250(9.84) 124(4.87) 300-400
(11.8-15.7)		 150-200
(5.90-7.87)		 90kg/198.4lb
KPMJ-4060B 600(23.6) 380(14.9) 140kg/308.7lb
KPMJ-4080B 800(31.5) 500(19.6) 185kg/407.9lb
KPMJ-5065B 490
(19.2)		 650(25.5) 300
(11.8)		 400(15.7) 129(5.07) 400-450
(15.7-17.7)		 130-140
(5.11-5.51)		 200-240
(7.87-9.44)		 230kg/507.0lb
KPMJ-6580B 650
(25.5)		 800(31.5) 400
(15.7)		 600(23.6) 159(6.25) 400kg/881.8lb
   ※ Larger sizes are available. Please contact us.
