MAGNETIC FILTER FOR VISCOUS LIQUID [Model PCMH2-D-B] CATALOG

PCMH2-D20B
 [Application]
This filter is recommended for installation in a passage between manufacturing processes in plants of pasty viscous
foods like juice and chemical products to separate and catch magnetic fine particles.

[Features]

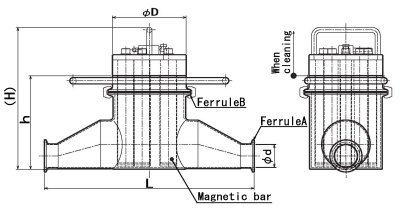

  • The outer pipe that comes in contact with liquid and the magnetic bar unit can be pulled out together, which improves the workability and facilitates cleaning.
  • The filter is of simple construction to facilitate replacement of parts and checking of magnetic bars.
  • An exclusive magnetic bar housing box is available optionally.

An exclusive magnetic bar
housing box(Optional)

[mm(in)]
Model Material Finish Pressure
Resistance
Limit		 Viscosity Upper
Limit of Applicable
Fluid(Ref)		 Magnetic Bar Dimensions Working Temp.
Upper Limit		 Mass
Material Qty Surface max.
Magnetic flux density		 A d B D L H h
PCMH2-D15B SUS304 #400
buffed		 500kPa
(5kgf/㎠)		 1.5×104mPa▪s
(1.5×104cP)		 SUS304 5 0.8T
(8000G)		 1 1/2S 35.7
(1.41)		 4 1/2S 116
(4.56)		 33080
(12.9)		 223
(8.77)		 147
(5.78)		 80℃
(176° F)		 8kg/17.6lb
PCMH2-D20B 2 S 47.8
(1.88)
PCMH2-D25B 6 2 1/2S 59.5
(2.34)		 5 1/2S 140
(5.51)		 420
(16.5)		 261
(10.2)		 178
(7.00)		 14kg/30.8lb
PCMH2-D30B 3 S 72.3
(2.84)
PCMH2-D35B 3 1/2S 85.1
(3.35)
